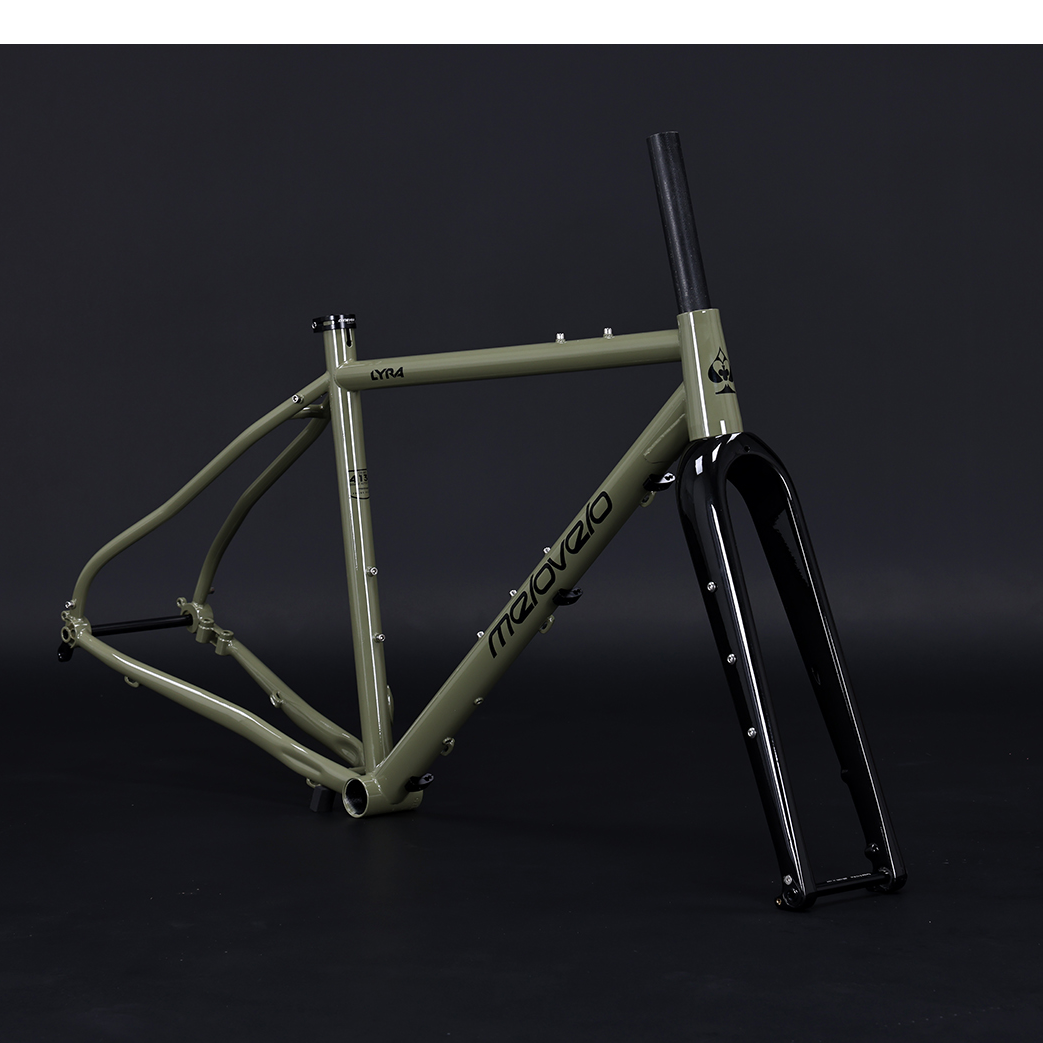

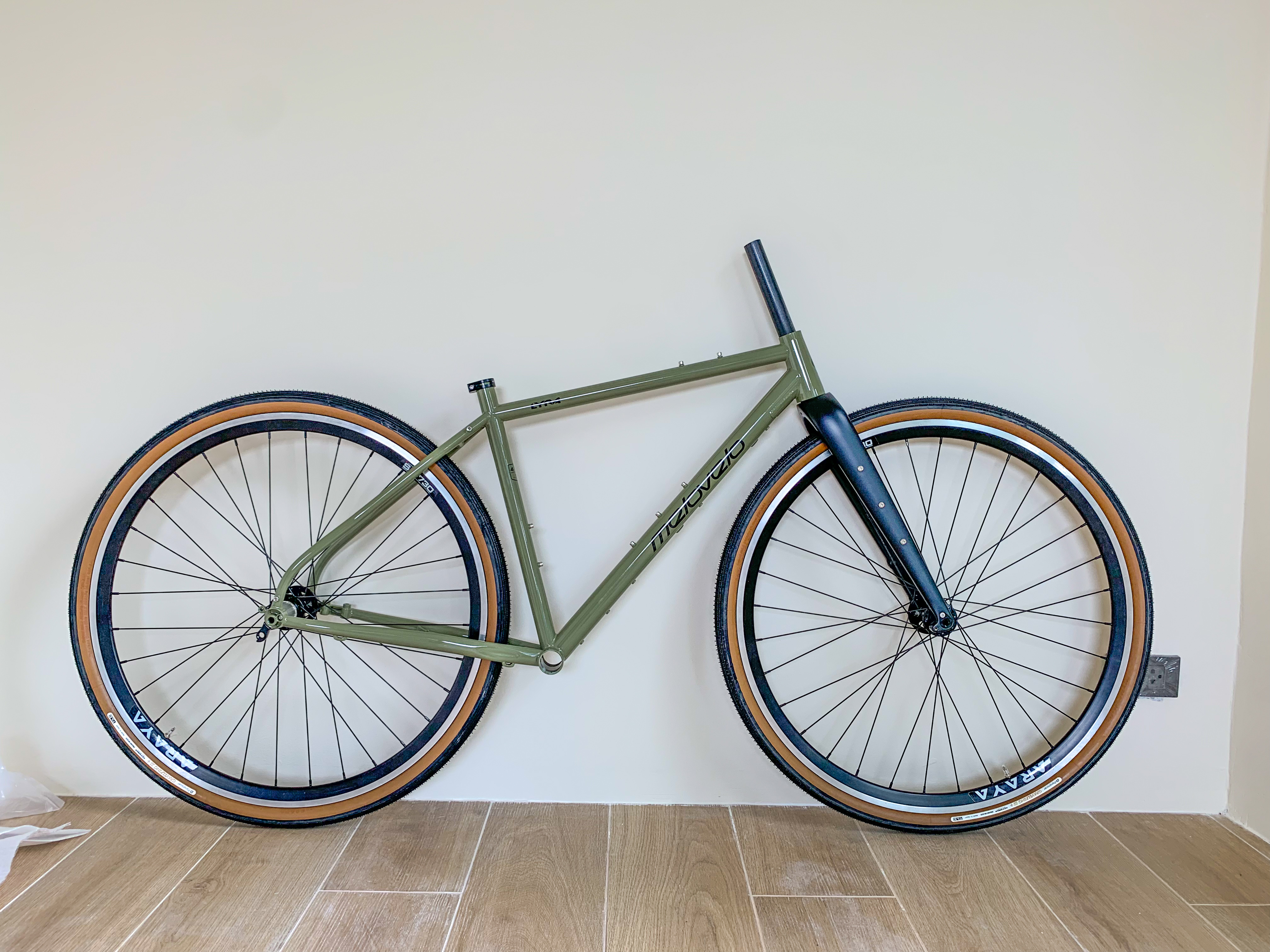

melovelo LYRA frameset : ALL ROADS/ GRAVEL wheelsize : 700c material: CroMoly 4130 fork: Full carbon / Tapered size 460 Geometry: stack: 535.7mm reac: 359mm stack to reach ration: 1.49:1 seat tube lenght, C-T 460mm top tube lenght, Effective: 518.6mm head tube angle: 70deg seat tube angle: 74.5 deg head tube length: 110mm BB drop: 65mm BB height: 291mm chain stay length: 425mm chain stay lenght - Horizontal : 420mm front center: 593.6mm front center horizontal : 585mm wheelbase: 1005mm fork offset/Rake: 45.8mm fork lenght: 407.6 trail: 80.8mm (very high) mechanical trail: 76mm tire to pedal spindle: 67.6 (with 170mm cranks) wheel flop: 26mm pedal spindle to ground clearance: 121mm (with 170mm cranks) _______________________ BASE BUILD wheelsize: 700c/29 inch tire width: max 45mm bike lenght with tires: 1717mm
